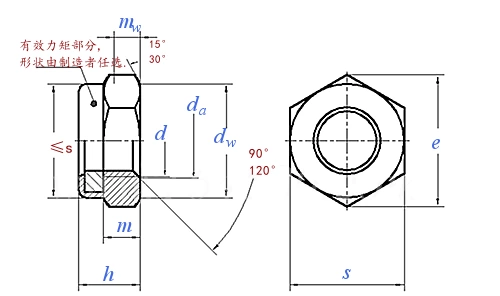

| P |
螺距 |
粗牙 |
| 细牙1 |
| 细牙2 |
| da |
最小值 |
| 最大值 |
| dw |
最小值 |
| e |
最小值 |
| h |
最大值=公称 |
| 最小值 |
| m |
最小值 |
| mw |
最小值 |
| s |
最大值=公称 |
| 最小值 |
| 千件重kg |
|
| 0.5 |
0.7 |
0.8 |
1 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
| / |
/ |
/ |
/ |
/ |
1 |
1 |
1.5 |
1.5 |
1.5 |
2 |
| / |
/ |
/ |
/ |
/ |
/ |
1.25 |
1.25 |
/ |
/ |
1.5 |
| 3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
18 |
| 3.45 |
4.6 |
5.75 |
6.75 |
7.75 |
8.75 |
10.8 |
13 |
15.1 |
17.3 |
19.5 |
| 4.6 |
5.9 |
6.9 |
8.9 |
9.6 |
11.6 |
15.6 |
17.4 |
20.5 |
22.5 |
24.9 |
| 6.01 |
7.66 |
8.79 |
11.05 |
12.12 |
14.38 |
18.9 |
21.1 |
24.49 |
26.75 |
29.56 |
| 4 |
5 |
5 |
6 |
7.5 |
8 |
10 |
12 |
14 |
16 |
18.5 |
| 3.7 |
4.7 |
4.7 |
5.7 |
7.14 |
7.64 |
9.64 |
11.57 |
13.3 |
15.3 |
17.66 |
| 2.4 |
2.9 |
3.2 |
4 |
4.7 |
5.5 |
6.5 |
8 |
9.5 |
10.5 |
13 |
| 1.65 |
2.2 |
2.75 |
3.3 |
3.85 |
4.4 |
5.5 |
6.6 |
7.7 |
8.8 |
9.9 |
| 5.5 |
7 |
8 |
10 |
11 |
13 |
17 |
19 |
22 |
24 |
27 |
| 5.32 |
6.78 |
7.78 |
9.78 |
10.73 |
12.73 |
16.73 |
18.67 |
21.67 |
23.67 |
26.16 |
| 0.5 |
1 |
1.4 |
2.4 |
3 |
5.1 |
10.6 |
17.2 |
26 |
34 |
45 |
|
